where is the thermocouple??

Reply

  #1
Old 01-01-12, 01:43 PM
Member
Thread Starter
Join Date: Dec 2010
Location: USA
Posts: 332
Received 0 Votes on 0 Posts
where is the thermocouple??

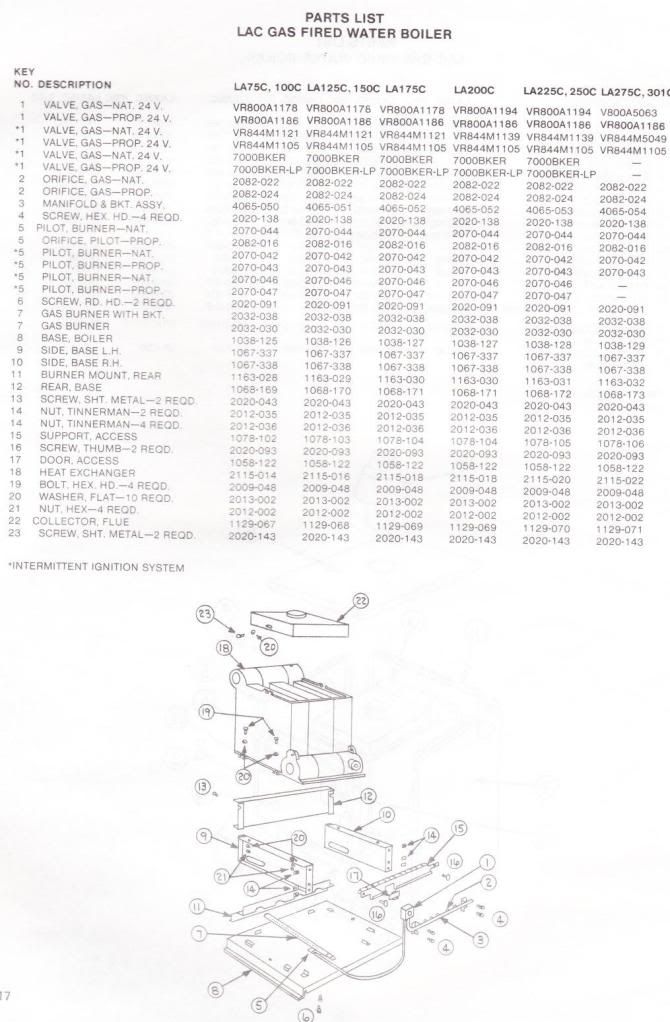

I'm trying to figure out the part number for the thermocouple for my old Repco LA 100C gas fired boiler. Here is an exploded diagram and the part list:



looking at the image, i see the gas valve (1) and pilot (5) and there should be a thermocouple wire going from the gas valve assembly along the side of the pilot tube ending with a thermocouple near the pilot light. the thing is, i don't see it on the picture or on the list.

i took a picture of the boiler:



and i believe the copper looking wire going under the hood next to the pilot is the thrermocouple wire.

so why would it be missing on the part list and image? the boiler is 30 years old so i can't find the parts for it just by googling and i think i might be able to find it part number. except i don't have.

help?

Sponsored Links
  #2
Old 01-01-12, 02:24 PM
Member
Join Date: Feb 2011
Location: US
Posts: 552
Received 0 Votes on 0 Posts
No clue about the parts list Diver, sorry.
The copper line looks like it might be the thermocouple to me.
The aluminum line should be the the gas line to the pilot.
Look underneath to be sure.
Get a picture if you can.


Peter

  #3
Old 01-01-12, 03:51 PM
Member
Join Date: Aug 2009
Location: USA
Posts: 4,947
Received 0 Votes on 0 Posts
Wouldn't a universal thermocouple work for this?

  #4
Old 01-01-12, 04:00 PM
Member
Thread Starter
Join Date: Dec 2010
Location: USA
Posts: 332
Received 0 Votes on 0 Posts
Peter,

I'm pretty sure it is thermocouple, i just don't get why it's not on the part list!

drooplug,

is there a part number for a universal one? i cold figure out the voltage from the electrical diagram, unless they all are the same ...

  #5
Old 01-01-12, 04:28 PM
Member
Join Date: Aug 2009
Location: USA
Posts: 4,947
Received 0 Votes on 0 Posts
I don't know if they are all the same, but I would assume the universal work in a lot of appliances.

This is a 24" model, but they also offer 36": 24 in. Universal Gas Thermocouple-CQ100A1013 at The Home Depot

  #6
Old 01-01-12, 06:13 PM
Member
Join Date: Oct 2008
Location: USA
Posts: 2,925
Received 8 Votes on 8 Posts
is there a part number for a universal one? i cold figure out the voltage from the electrical diagram, unless they all are the same .
Go to any good hardware store, and ask for a thermocouple. 95+% of them are all the same, except for the length. Good luck.

  #7
Old 01-01-12, 06:16 PM
Member
Thread Starter
Join Date: Dec 2010
Location: USA
Posts: 332
Received 0 Votes on 0 Posts
cool, thank you guys for the info
