Heat not transferring to secondary loop

Reply

  #1
Old 11-08-15, 09:15 AM
Member
Thread Starter
Join Date: Dec 2014
Posts: 40
Received 0 Votes on 0 Posts
Heat not transferring to secondary loop

Morning all,

Well after what I thought was going to be a good improvement, it appears something is still wrong. To fix a return temperature problem in a gravity conversion i re-piped it for primary/secondary. Problem is everything appears to be pumping and warming up as expected, but the heat isn't transferring into the secondary loop. Everything gets hot right up to the supply tee but the DHW loop only warms to about 90 degrees. Ditto for the heating. Return temp below the ESBE hovers around 130-140. The boiler shuts off at 180 but continues to tick up in temp eventually tripping the reset at 200. I.e. all that heat isn't going where it's supposed to.

Thought 1: It's a circulator sizing issue.
Thought 2: The horizontal primary meeting the horizontal secondary isn't proper thermodynamics and i have a bit of a heat trap. The basement has a low ceiling complicated with tight clearance below the old gravity mains, but my thought was to lower the top of the primary loop 6" and elbow up vertically into tees.
Thought 3: The near piping on either side of the tees should've been upsized to 1-1/2" to better accommodate the pressure drop and/or reverse flow.

Any help or other opinions are greatly appreciated. Thanks all.

Winter is coming.




Sponsored Links
  #2
Old 11-08-15, 11:06 AM
poorplmbr's Avatar
Member
Join Date: Feb 2003
Location: long island ,new york
Posts: 298
Received 0 Votes on 0 Posts
Step back and take some pictures of the whole piping layout...I don't see any pump on your secondary piping loop, there is one , isn't there?

  #3
Old 11-08-15, 11:32 AM
Member
Thread Starter
Join Date: Dec 2014
Posts: 40
Received 0 Votes on 0 Posts

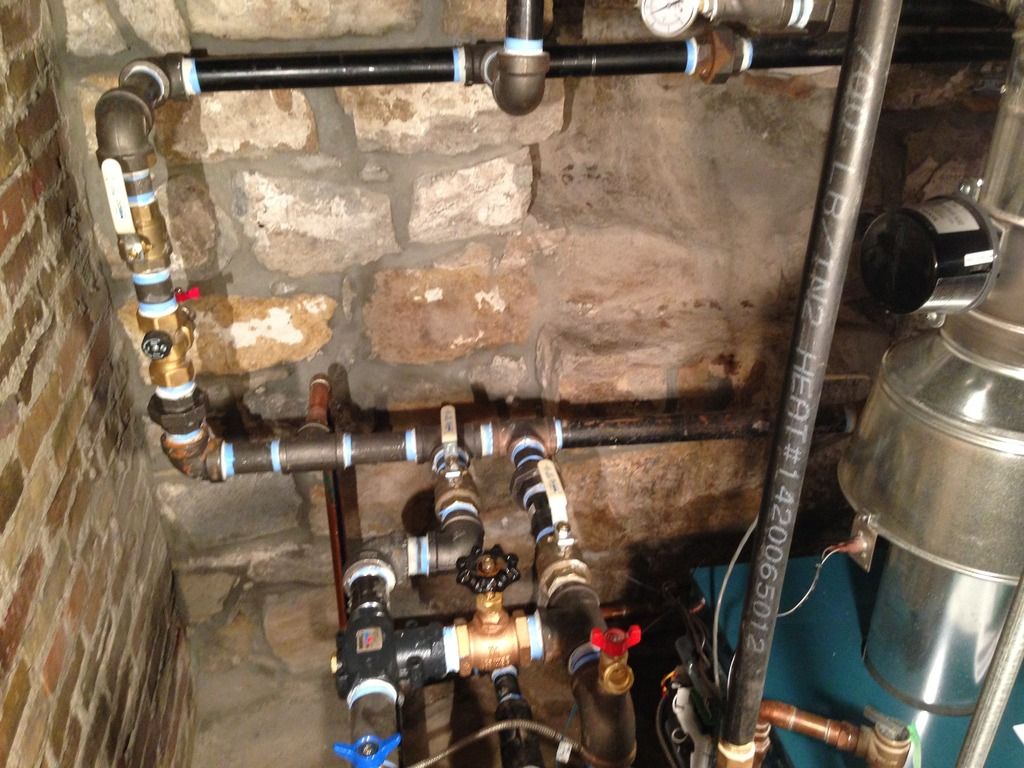

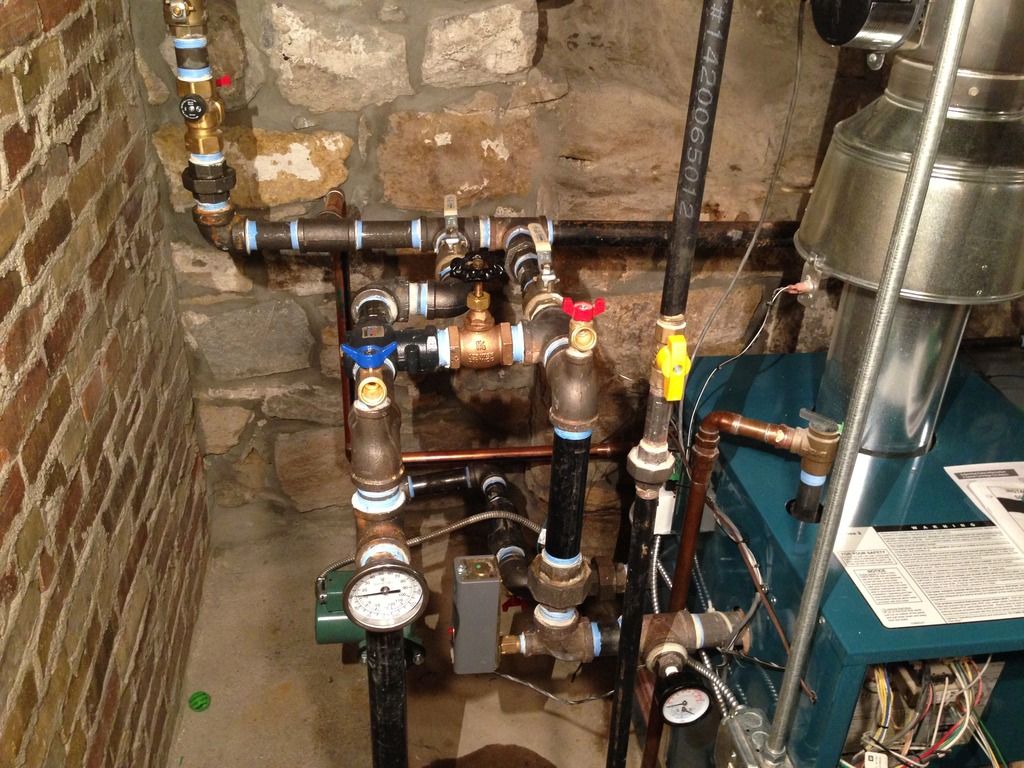

No problem, here you go. These were taken prior to adding the globe valve at the ESBE.


  #4
Old 11-08-15, 08:00 PM
NJT's Avatar
NJT
NJT is offline
Member
Join Date: Oct 2006
Location: USA
Posts: 23,539
Received 2 Votes on 2 Posts
Beer, would it be possible to draw a diagram of what you've got?

Doesn't have to be fancy, just something to untwist all the pipes in the head.

  #5
Old 11-08-15, 09:01 PM
Member
Thread Starter
Join Date: Dec 2014
Posts: 40
Received 0 Votes on 0 Posts
You bet. In a nutshell I'm this first pic only with DHW thrown in. All pipe is 1-1/4". Bottom pic is an overlay of where it currently sits. I didn't diagram the expansion tank, scoop, etc. but of course they're all present.




  #6
Old 11-11-15, 08:28 PM
Member
Thread Starter
Join Date: Dec 2014
Posts: 40
Received 0 Votes on 0 Posts
Well I believe I've uncovered at least part of the issue. I was trying to merge onto the interstate at 60mph during rush hour...

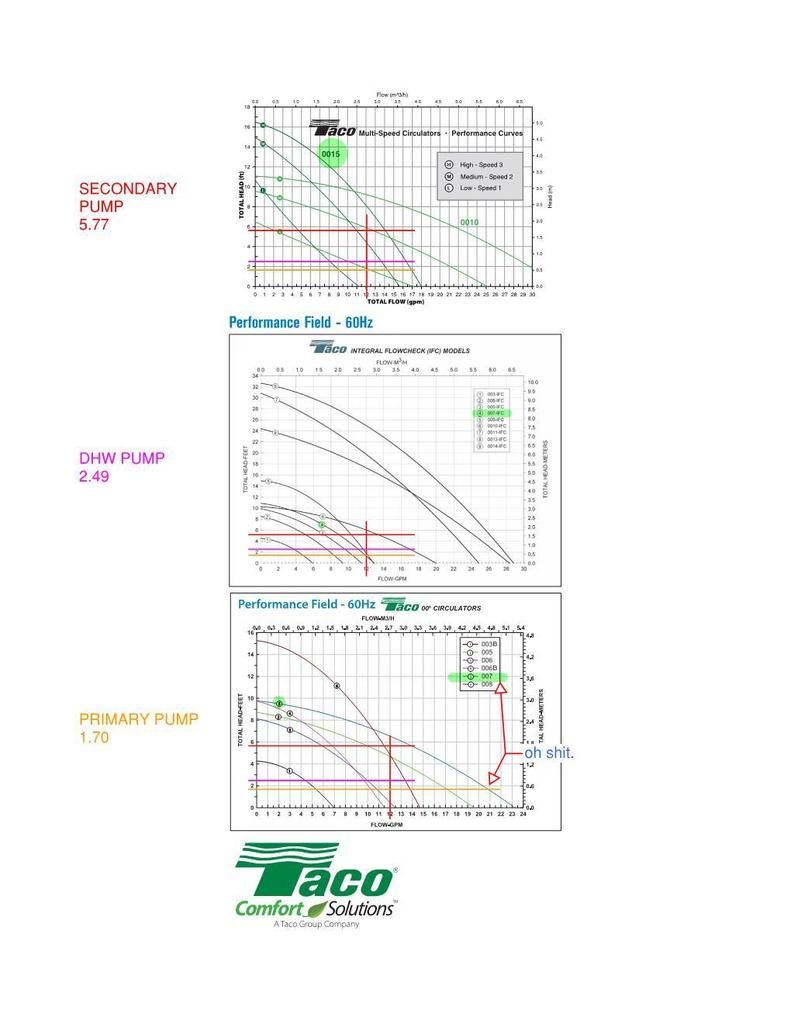

The heat loss is 87k, the existing rads EDR is just below that @170 degrees, and the boiler has a DOE of 108k. Using the GPM+BTUH/(dTx500) gives me a target flow around 8-9gpm and the recommended upsizing from Dan Holohan and others gives a target around 12gpm since it's a gravity conversion and we need to keep things moving a little faster.
