wiring heat pump

putting in new heat pump as part of addtion. the HVAC guy said I need to put new wire for air handler. the old heat pump air handler was on 50amp breaker, which I thought would be plenty. But the wire is SE 8-8-8. I need 6 wire, according to the HVAC guy. So is SE wire ok to use? I looked at connection to disconnect and it just has two wires and green grounding screw. Other options for wire type? NM OK? Is conduit needed for either of these? It will run in unfinished basement along/through joists (not along any concrete walls), then go up (in space next to old chimney that is not going to be used anymore-same place old wire ran) two floors and then in attic to the disconnect. run will be about 50ft. then will go from disconnect to air handler. 1.) is conduit needed anywhere in this run? 2.) what is best wire choice-type 3.) what gauge wire? HVAC guy said 6/2 but I thought might need 4/2 after looking at stickers shown below.

air handler label


aux heater label

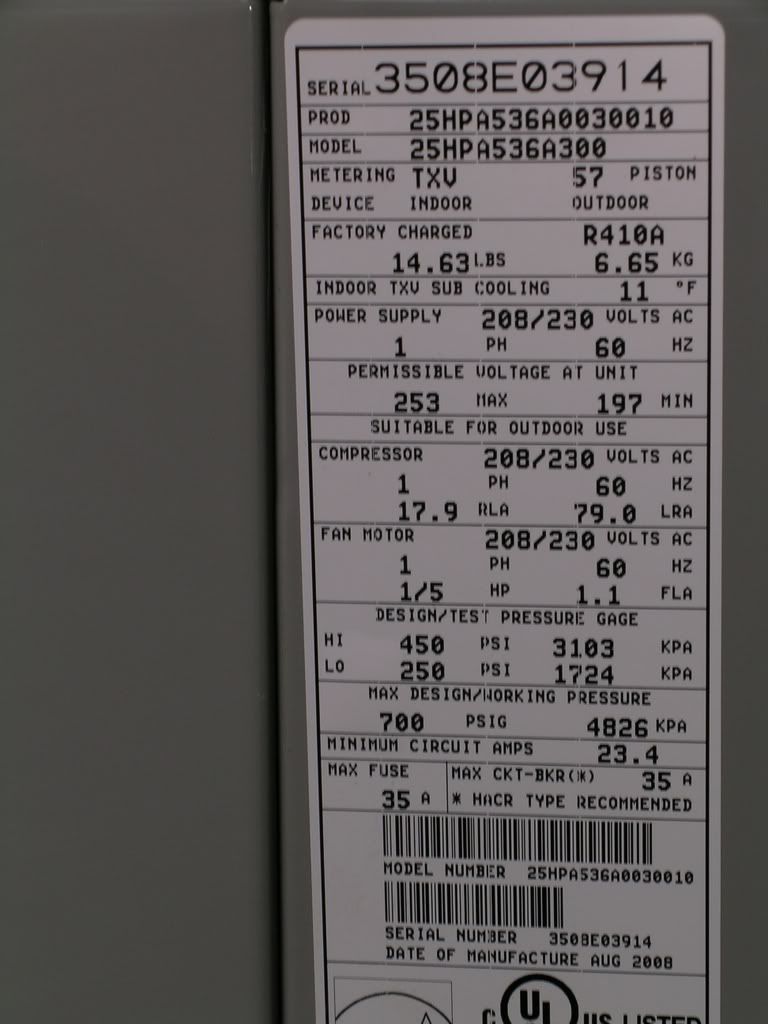

for outdoor condenser unit, there is 10/2 UF-B wire on 30 amp circuit. unit rated at 23.4A per sticker. The wire runs along foundation into disconnect and then to unit. No conduit is used either in run to disconnect or from disconnect to unit. The wire never goes below ground. I thought you had to use conduit when running wire along foundation? I thought everything else OK except the conduit question.

condenser label


I need to run out and get the wire ASAP so any help apprecitated.
