Confoozled about my kitchen... or is it my outside lighting... or both? AGH! :D

Confoozled about my kitchen... or is it my outside lighting... or both? AGH! :D

Reply

  #1
Old 05-14-10, 07:09 PM
S
Member
Thread Starter
Join Date: Jan 2010
Location: Phoenix, AZ
Posts: 106
Received 0 Votes on 0 Posts
Confoozled about my kitchen... or is it my outside lighting... or both? AGH! :D

I reached a point of mild frustration on my other wiring project, and decided I needed an easy victory to perk me back up. I'm sick of painting and not ready to tackle my next plumbing project, so I decided - what can be easier than swapping out a white switch for a black switch. (I'm a girl - the color of my receptacles and switches is important to me.)

Kitchen. Take the cover off a two-gang box - the switch that controls my disposal and, on a separate circuit, a plug. Disregard plug. To my knowledge, downstream of this box is only the receptacle into which the dishwasher & gd are plugged. Look in box, we have 3 sets of wires. We've got:

12-2 from source (I think). Black is nicely wirenutted to the black off the switch, and to the black of a 12-3 leading to the downstream outlet. Nice. Off of the switch is a the red from the 12-3 that runs to the downstream outlet - cool. So the one plug is always on, the other gets juiced when I flip the switch. I'll take it.

Sort of separate from all this is another 12-3. The red and the black are nutted together. The white is nutted in with the neutrals from the other two wires. A little research says that a shared neutral is OK. Correct?

I go and shut off the power to the breaker I think is correct. Come back in - there are still hot wires in the box. Hrm? I restore power to the first breaker, and turn off the one above it. Still hot wires. I turn off BOTH breakers... NOW the box is dead. That doesn't seem right to me, but... I'm not a pro.

Looking at the breaker itself, it is 20A (yay), and it says Two 1 Pole breakers. Into one there is a red wire, into the other there is a black.

So, questions:

Is this OK? That I have to turn off both breakers to shut off the wires? I guess I either have 12-3 running from the breaker to the inside box or 12-2 AND 12-3 running from the source but, regardless, shouldn't shutting off the red-wire breaker be mutually exclusive from shutting down the black-wire one? Or is there a connection in the breaker itself?

If it is not kosher, how do I fix?

If it is kosher, or I can make it kosher, and the black hot feeds the garbage disposal & dishwasher, can I put the outlet (the one we disregarded earlier, remember?) on to the red hot (which feeds 3 ceiling fan/light fixtures & 2 outlets that are outside and dry)?

THANKS!!

Sponsored Links
  #2
Old 05-14-10, 07:24 PM
pcboss's Avatar
Forum Topic Moderator
Join Date: Jul 2002
Location: Maryland
Posts: 15,144
Received 85 Votes on 73 Posts
Sounds like you are dealing with a multi-wire circuit. You are allowed to have multiple circuits in one box. The code rule was that if both legs of the circuit landed on the same strap a 2 pole breaker was required.

  #3
Old 05-15-10, 08:50 AM
S
Member
Thread Starter
Join Date: Jan 2010
Location: Phoenix, AZ
Posts: 106
Received 0 Votes on 0 Posts
Originally Posted by pcboss View Post
Sounds like you are dealing with a multi-wire circuit. You are allowed to have multiple circuits in one box. The code rule was that if both legs of the circuit landed on the same strap a 2 pole breaker was required.
Oooh, lingo. What do you mean by 'landed on the same strap'?

Thank you - I just googled multi-wire circuit and found a site that clarified what it is, and how it is supposed to be done, for me. Sounds like my set-up is kosher and that the only thing that isn't exactly right is that the connection between the two breaker switches isn't there, making a lay-person (me) think they are separate.

Do I have to treat these circuits any differently than other, non-shared circuits? Any load considerations since they share a neutral (I'd like to put one outlet on the circuit that doesn't have the dishwasher & disposal)?

Again, many thanks. This forum is such a wonderful resource.

  #4
Old 05-15-10, 10:10 AM
pcboss's Avatar
Forum Topic Moderator
Join Date: Jul 2002
Location: Maryland
Posts: 15,144
Received 85 Votes on 73 Posts
The two hot conductors of the MWBC need to be on opposite legs of the panel, otherwise the neutral can carry up to twice the current it is designed for. This would create a fire hazard. A standard two pole breaker assures that the MWBC is wired correctly.

  #5
Old 05-15-10, 03:19 PM
SilverTattoo's Avatar
Member
Join Date: Apr 2010
Location: USA Tennessee Nashville
Posts: 215
Received 0 Votes on 0 Posts
To my knowledge, downstream of this box is only the receptacle into which the dishwasher & gd are plugged. Look in box, we have 3 sets of wires. We've got:
dishwasher should of been dedicated. Which box did you look in? It could be the receptacle is daisy chained..

12-2 from source (I think). Black is nicely wirenutted to the black off the switch, and to the black of a 12-3 leading to the downstream outlet. Nice. Off of the switch is a the red from the 12-3 that runs to the downstream outlet - cool. So the one plug is always on, the other gets juiced when I flip the switch. I'll take it.
Need to make sure what is what. The black leading downstream sounds like its just passing on the power to the other recps (daisy chained). The red could be a switch leg for the switch or a MWBC (which if so it needs to be on a 2 POLE BREAKER..) Though it reads like its a switch leg due to the others coming on with the switch is flipped.. (must be old home) Not code for kitchen at all. Should be GFCIs and not on a switch.

Sort of separate from all this is another 12-3. The red and the black are nutted together. The white is nutted in with the neutrals from the other two wires. A little research says that a shared neutral is OK. Correct?

Red and black are tied together??? is NOT GOOD AT ALL!!

I am going to need a lot more info to help you on this one.. "Sort of separate" is not enough to really address this. Though...

Red and black are tied together??? is NOT GOOD AT ALL!!

I go and shut off the power to the breaker I think is correct. Come back in - there are still hot wires in the box. Hrm? I restore power to the first breaker, and turn off the one above it. Still hot wires. I turn off BOTH breakers... NOW the box is dead. That doesn't seem right to me, but... I'm not a pro.
Its 2 circuits and apparently a MWBC...

Really need more accurate/detailed info..

Looking at the breaker itself, it is 20A (yay), and it says Two 1 Pole breakers. Into one there is a red wire, into the other there is a black.
two 1 pole breakers???? where does it read this?? It should be a 2 POLE BREAKER by CODE. I will have to dig up the code but it is code.

Is this OK? That I have to turn off both breakers to shut off the wires? I guess I either have 12-3 running from the breaker to the inside box or 12-2 AND 12-3 running from the source but, regardless, shouldn't shutting off the red-wire breaker be mutually exclusive from shutting down the black-wire one? Or is there a connection in the breaker itself?
No it is NOT!! I need more accurate info and you need a 2 pole breaker and figure out why the black and red is tied together which makes zero since. I dont see how the breaker has not tripped.. Get more info and reply back. I will try to answer if im around.
Good luck

  #6
Old 05-16-10, 05:32 PM
S
Member
Thread Starter
Join Date: Jan 2010
Location: Phoenix, AZ
Posts: 106
Received 0 Votes on 0 Posts
Thanks for the response, SilverTattoo. At the time I wrote that, I didn't have a full grasp of what was happening. I thought I did, but went back and did some more poking around, and here is how the box was actually set up:



For the breaker - it takes up 2 spots and has a label on it. I swear it says Two 1 Pole breakers, and then there is a little chart below where it tells you what AWG to use depending on how many amps (up to 40 on the chart) you're going to run through it.

The house is old - built in 1974, so I do find things that aren't up to modern code. My understanding, though, is that the disposal and dishwasher are OK on the same circuit and that, because they are below the counter, don't need to be on a GFCI.

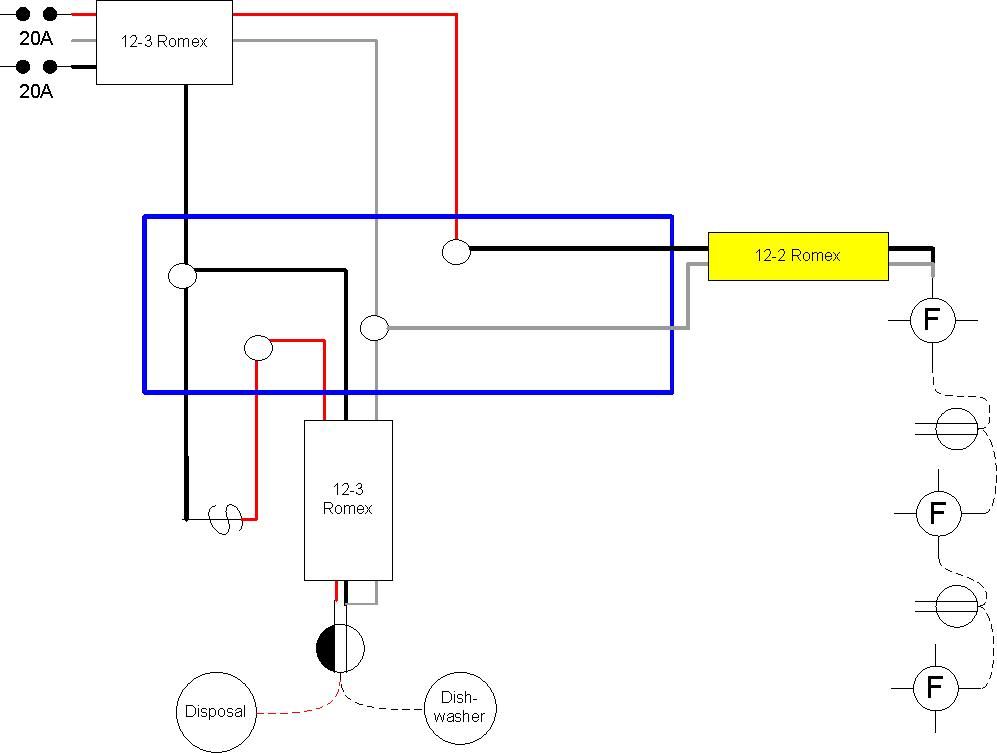

I did some work on the box, and it is now set up as follows:
