New connection for central AC

I will be adding Central AC to my home and all the estimates exclude the cost of what they call HV (High Voltage) wiring. I have always done all my own electrical work and I have not problem with it but I do have a few questions.

I have a wall mounted GE main panel. That is mounted in the plaster wall. It has plenty of space but there is no access to the outside of the panel. I can open a knockout and fish a wire down but I have no way to put a clamp in. Is there a special type of acceptable clamp for this type of situation? Having only access to the inside.

The circuit will be either 2-10/wg or 2-8/wg and either a 30A or 40A DP breaker as per the furnace installers specs. There will be a 60A disconnect mounted outside where the compressor is to be installed. I will use raintight flexible conduit from the disconnect to the compressor.

I will also be running a 2-12/wg for an outside GFCI receptacle within reach of the compressor.

Does code require a ground rod at the compressor site? Is there anything else I need to know about this install?

Sponsored Links
  #2
Old 09-17-11, 04:42 AM
chandler's Avatar
Banned. Rule And/Or Policy Violation
Join Date: Dec 2005
Location: USA
Posts: 39,968

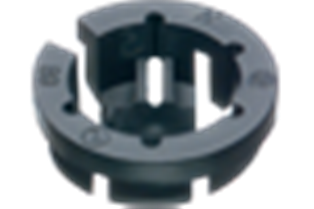

As for the "clamp" if you can fish the cable through the appropriately sized hole, then, likewise an appropriately sized snap in cable "keeper" will be fine. Their main purpose is not to be so much a strain relief, but to keep the cable from chafing on the sharp edges of the hole in the box. Sample below. Again, check for the correct size for the cabling you are using.
