Help with Code Violations on Recent Work

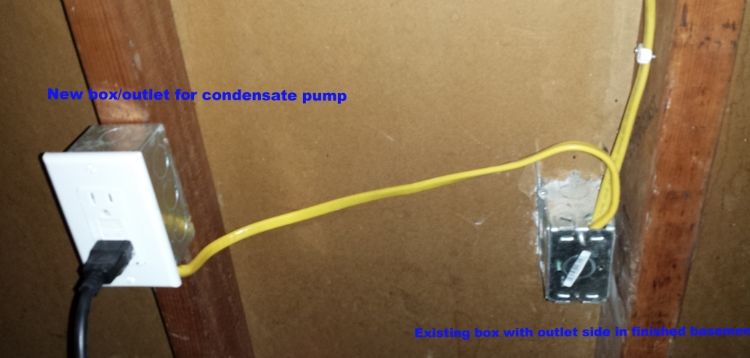

I recently had my A/C system replaced and upgraded with a heat pump system. As a result, the existing air handler rated with a 120V circuit was upgraded to a 240V circuit. The outlet for the previous condenser pump was run off that original 120V line feeding the air handler. With that line no longer being in place, they tapped off the 20 Amp AFCI circuit feeding my finished basement. The wall is still open on one side as shown in the picture below.
Unfortuantely, I have found several things I think are code violations and I wanted to run them by you guys before approaching my contractor.



The new box/outlet.


The box that was tapped.



These are the things I think are violoations. Please let me know if I am mischaracterizing anything. The new wire they ran is not stapled after leaving the existing box or before entering the new box. The ground wire in the new box is attached only to the GFCI outlet and not also bonded to the metal box. The ground wire in the outlet they tapped off of is wrapped around the existing ground and is not securely attached in some manner like with a pigtail and wire nut. Also, there is far too much of the 12/2 wire casing left in each of the boxes.

Then there are a couple of things I am unsure of. First of all, is it ok to just tap off this 20 Amp circuit to run the condensate pump. It's only 1 Amp so it's not the load I'm concerned about, but just wasn't sure if code required a dedicated circuit or something.

The box is actually surface mounted to the stud as shown below. I know surface mounting is not necessarily against code depending upon the circumstance, but this one seems odd to me. Since this is a wall with a finished basement on the other side, I would think the outlet should be in the wall bay attached to the side of the stud and not surface mounted. I also would prefer it that way since I plan this summer to drywall this side of the wall as well. However, my preferences aside, is this a code violation?
