Issues with 240V cable run on new HVAC install

Reply

  #1
Old 06-24-14, 06:47 PM
Member
Thread Starter
Join Date: Dec 2009
Location: Pennsylvania, USA
Posts: 173
Received 0 Votes on 0 Posts
Issues with 240V cable run on new HVAC install

I recently had my central A/C system replaced with a heat pump system. I have noticed some issues with the running of the two 240V lines and had some questions as to whether some items were code violations. I want to be sure I fully understand the issue and proper method so I can ensure they properly resolve the issues.

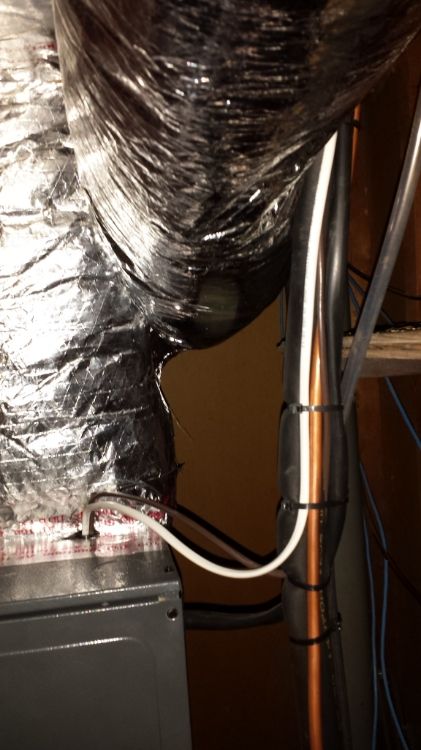

In a previous post on a separate issue, it was pointed out to me in one of my pictures that the 240V line should not be ziptied as shown below.


What is the acceptable attachment method? With exposed joist bays, is it acceptable to staple to the face of the joist? I know with 12/2 and 14/2 you need to have a runner board, but have never personally installed any 240V.

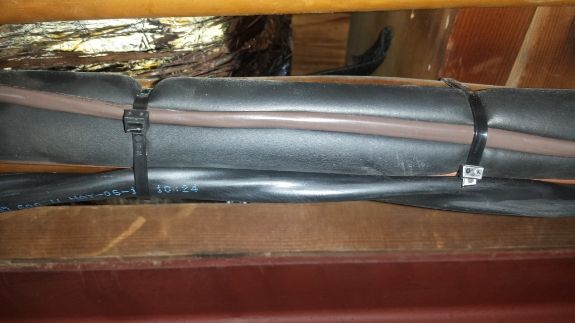

In some instances, the cable is supported as a bundle with the A/C plumbing lines as shown below. Is this acceptable?

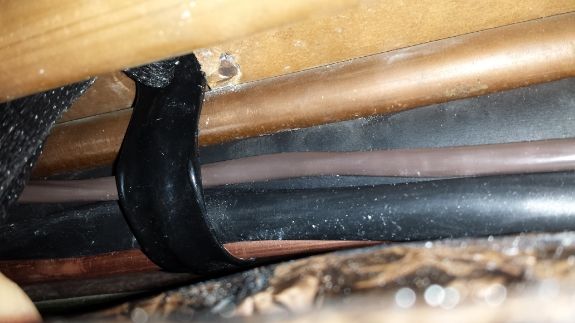

Is it ok to turn the 240V between two plumbing lines as shown below? The red arrosws are the two 240V lines. I know both should be better stapled to the joist, but was unsure if running between the two pipes was acceptable.

The wiring is also resting on my baseboard hot water pipes from my boiler. Is that acceptable?

My final question is just basically an extension of the first one. In the vertical run to get outside to the compressor, the 240V is also zip tied. What would be an acceptable manner of supporting the wire in this instance with the concrete wall?


Sponsored Links
  #2
Old 06-24-14, 07:10 PM
CasualJoe's Avatar
Member
Join Date: Jan 2010
Location: United States
Posts: 10,290
Received 43 Votes on 35 Posts
In a previous post on a separate issue, it was pointed out to me in one of my pictures that the 240V line should not be ziptied as shown below.
That's right, cables ziptied to the refrigerant lines are a code violation.

What is the acceptable attachment method? With exposed joist bays, is it acceptable to staple to the face of the joist? I know with 12/2 and 14/2 you need to have a runner board, but have never personally installed any 240V.
Is this a basement or a crawl space. If a basement, I'd run the NM cable through holes bored in the joists. If a crawl space, I'd probably use a running board on the bottom of the joists.

In some instances, the cable is supported as a bundle with the A/C plumbing lines as shown below. Is this acceptable?
No

Is it ok to turn the 240V between two plumbing lines as shown below? The red arrosws are the two 240V lines. I know both should be better stapled to the joist, but was unsure if running between the two pipes was acceptable.
Running NM cable between the pipes is acceptable if they are properly supported. Why do you have two 240 volt cables running the the outside heat pump?

The wiring is also resting on my baseboard hot water pipes from my boiler. Is that acceptable?
I don't think the heating pipes will damage the cable, but the cable is not installed or secured properly.

In the vertical run to get outside to the compressor, the 240V is also zip tied. What would be an acceptable manner of supporting the wire in this instance with the concrete wall?
You should have conduit running down the face of the masonry wall with an LB fitting to go through the wall. What does the outside look like? Is there a proper NEMA 3R raintight disconnect at the heat pump? Is the line voltage wiring in conduit to the unit?


Were there no inspections when this work was completed, no permits? In my area this job would take both a mechanical and an electrical permit with two inspectors, one for each trade. A real electrician wouldn't do work like that.

  #3
Old 06-25-14, 03:45 AM
Member
Thread Starter
Join Date: Dec 2009
Location: Pennsylvania, USA
Posts: 173
Received 0 Votes on 0 Posts
Is this a basement or a crawl space. If a basement, I'd run the NM cable through holes bored in the joists.
It's the garage portion of a basement.

Running NM cable between the pipes is acceptable if they are properly supported. Why do you have two 240 volt cables running the the outside heat pump?
It's two separate circuits. One 240V from the breaker box to the air handler and one 240V from the breaker box to the condenser. Would correct stapling at the proper distances make this properly supported?

I don't think the heating pipes will damage the cable, but the cable is not installed or secured properly.
What would be proper installing/securing? Is it just better stapling?

In the vertical run to get outside to the compressor, the 240V is also zip tied. What would be an acceptable manner of supporting the wire in this instance with the concrete wall?
You should have conduit running down the face of the masonry wall
with an LB fitting to go through the wall.

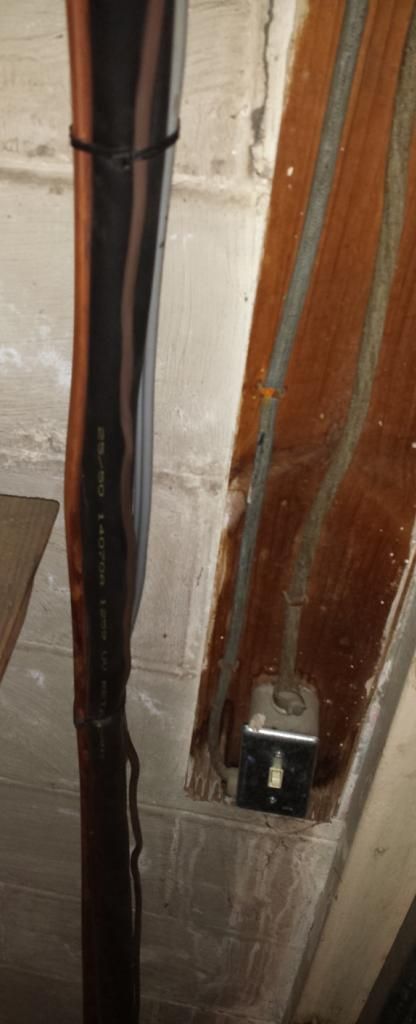

Is it a correct interpretation of this comment that just running the UF cable through a PVC pipe in the wall with the other connections (shown below) is not correct?
