Piggybacking a junction box

I want to add a receptacle in a closet because I want to move my WIFI router in there.

So I opened up the switch plate cover to the closet light switch, thinking perhaps I can add a receptacle there. I think I just opened a can of worms.

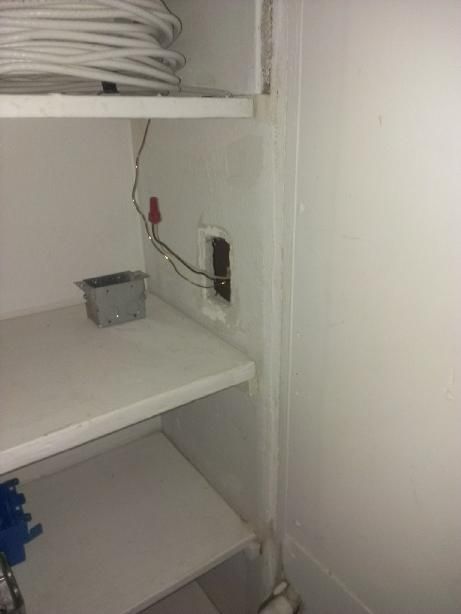

First, the cover plate will not come off, turned out it was packed full of adhesive caulk...after prying it out, the switch box itself was "caulked" to the wall board, instead of nailed or screwed to framing. There is a piece of 12-2 NM cable that comes in through the KO hole (no connector used). I then removed the switch box. As you can see, this is inside the closet.



If I peak into the hole, I can see the back side of another metal box where the NM cable comes from, what the? So I looked on the other side of the wall, well, that happens to be the tiny closet where the central AC unit is.

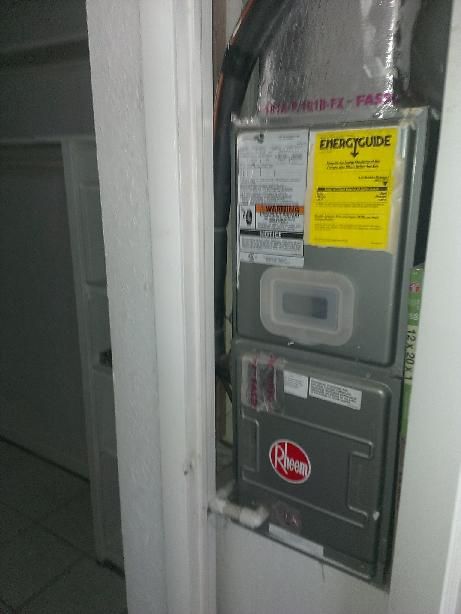

If I peek behind the air handler unit, I can see a blank cover plate on the wall. Can't get to it, but I can see it. The air handler is in the way. So QUESTION #1, this junction box can be seen, but can't be reached, not without removing the air handler first, I have a problem.

So I am guessing, at one point in time, the switch to the closet light is on the outside of the wall. Then they added the central AC system, so they closed off that switch box, and put in a new switch box inside the closet, on the other side of that wall. So this is what I have.

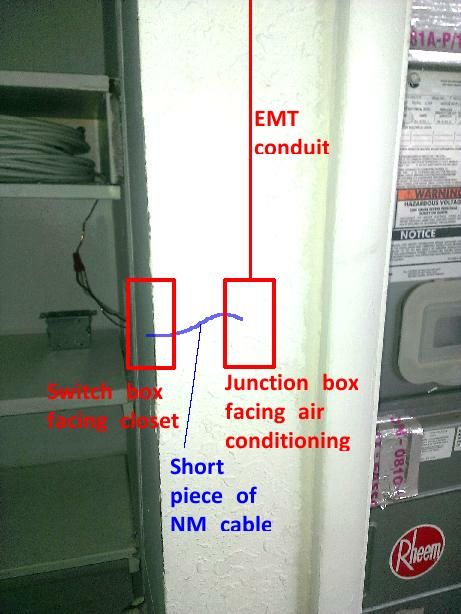

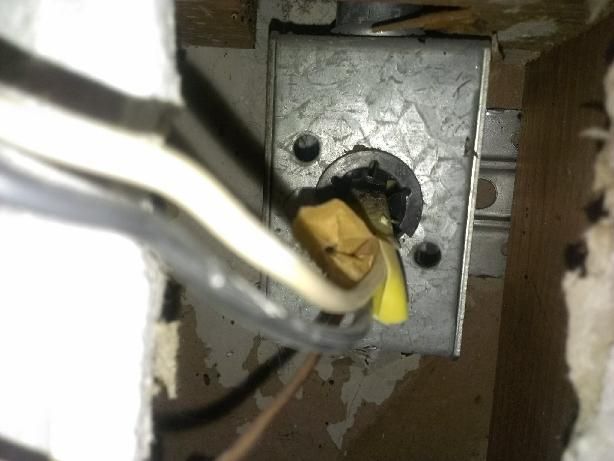

Why they didn't just free up that switch box, turn it around, and add an extension ring to it, I don't know. So here is a close up picture of the back of the old switch box, note that there is an EMT conduit connected to it up top.



If I can access that box from the AC side, I would redo the connection, but I can't. So here is my plan.

I would like to mount a 4" square metal box to the back of the old switch box WITHOUT any conduit or tubing in between (because I can't access the front side of that box to make the connection). I will enlarge the hole in the wall, to accommodate a square box, such that the 3/4" KO hole will align directly onto the plastic NM connector of the old switch box. Then I will tap and drill two 10-24 holes, and use 10-24 machine screws to connect the two boxes back to back. If the new box is recessed into the wall cavity, I will use an extension ring or mud ring to get it to sit flush. Like this:



Thoughts? If I have an attic I will do it differently, but this is a flat roof with no attic.

By the way, this doesn't solve my receptacle issue, as there is no neutral in this box, so I need to find another way.
