Rural service installation

This is for a rural property, no permits or inspections are required. I just bought a used trencher and would like to install electrical service between the poles and buildings myself. The actual "inside the box work" would be left to an electrician. We're not opposed to having our service provider upgrade our incoming power.

Want to go direct burial, 18" down, leaving several feet of slack at each end.
I have an account with a local electrical supplier as I play a low voltage contractor during the week

What size wire would I need to each?

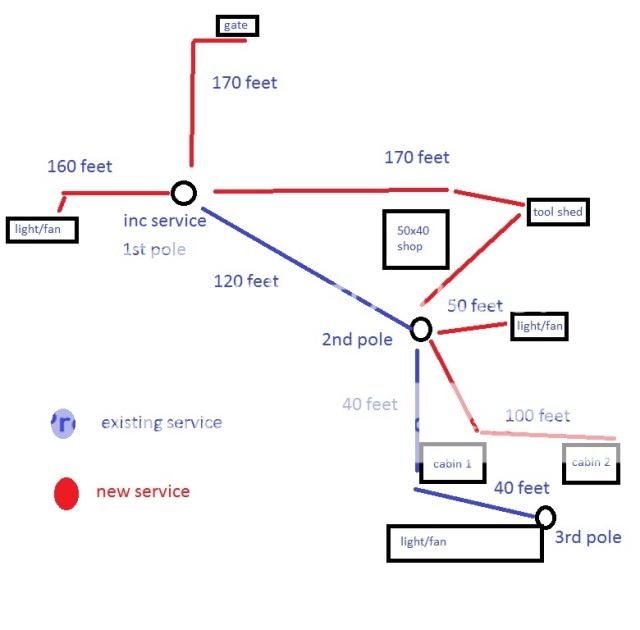

Blue is the existing service (toned pathway), red is what I need added. Not opposed to re-running a larger feed between pole 1 and pole 2. Here's what we want to power up.


Gate: sliding gate, lights, and once a year, Christmas lights

Tool Shed: lights, fan, feed to future 50x40 shop.

Shop: maybe some light wood working, sanders, lighting, large fans, ac unit for an enclosed storage area (paper goods, etc.)

Light/fan (2): two lights and one fan

Cabin 1: lights, fridge, freezer, small ac unit, fan

Cabin 2: 220 ac unit, fridge, freezer, washer/dryer, water heater, stove, septic unit, lights, fans, 1000w computers (2),

3rd pole (concrete patio): three ceiling fans, lights


No pics of box inside of cabin 1





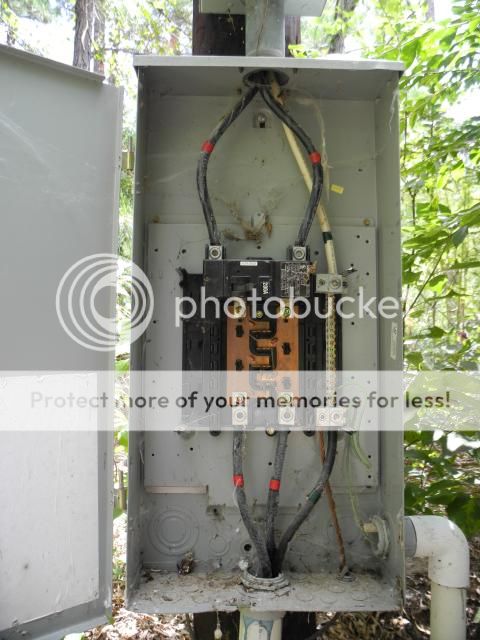

Pole 1




Pole 2






Pole 3
