Help on wiring an old temperature controller

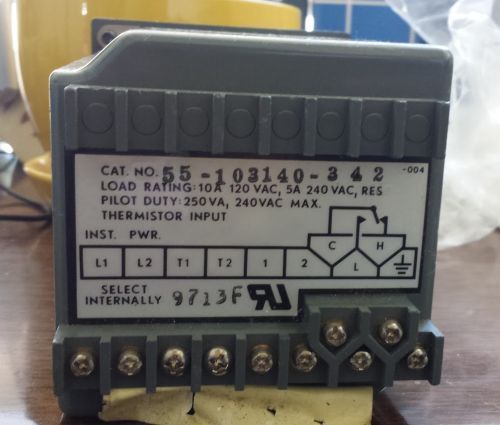

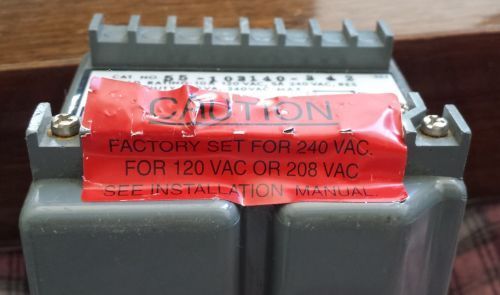

Hi! I have recently purchased an old Fenwal Model 551 Temperature controller. It has a sticker on it saying it can be set for 240, 208, and 120 VAC. I can't find the installation manual online and i don't feel like breaking it by guessing. Could use some help determining what each contact is for. I am from Canada Ontario so 120v input is what i am looking to select.

The only thing i could find is a feature info .pdf for it: http://mediaserver.voxtechnologies.c...6277544001.pdf

I am assuming that the C L H is for cooling load and heat? and maybe the 1 and 2 for the termocouple.



Thank you for your time!

Sponsored Links
  #2
Old 10-12-15, 11:41 AM
PJmax's Avatar
Group Moderator
Join Date: Oct 2012
Location: Northern NJ - USA
Posts: 46,124
Welcome to the forums.

L1 and L2 are power in.
T1 and T2 are for the remote temperature sensor.
1 and 2 are ??
C = common
L = low (N/O)
H = high (N/C)

As far as converting to a different operating voltage.... open it up and it should be easy to locate since it's sold as "field changeable".

  #3
Old 10-12-15, 12:25 PM
Member
Thread Starter
Join Date: Oct 2015
Posts: 3
Thanks a ton! that explains a lot and taking a look inside, 1 and 2 are not connected to anything anyway.

looking at the module inside, i'm assuming that it's a 240VAC that i'm set for?


KUP-5D15-24 TE CONNECTIVITY / POTTER & BRUMFIELD | Power - General Purpose Relays | Newark element14 Canada

  #4
Old 10-12-15, 12:31 PM
PJmax's Avatar
Group Moderator
Join Date: Oct 2012
Location: Northern NJ - USA
Posts: 46,124
No...it's not set to 240v. It looks to be set at 120v.

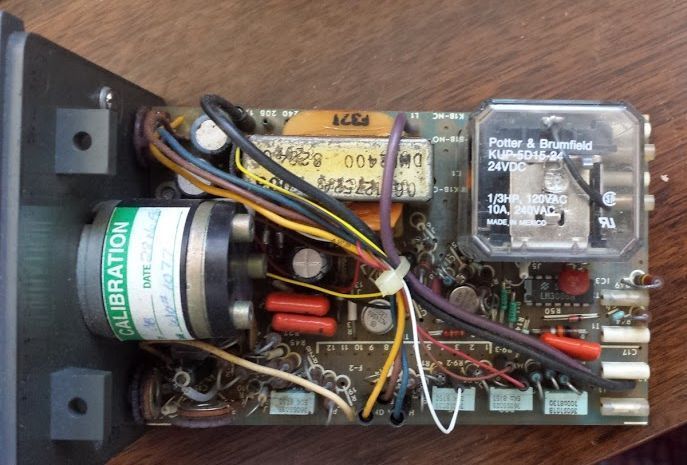

Name:  fenwal551c_zpstt7vo02t.jpg~original.jpg
Views: 136
Size:  29.8 KB

The black wire connects to the proper voltage pin.

  #5
Old 10-12-15, 12:47 PM
Member
Thread Starter
Join Date: Oct 2015
Posts: 3
thank you! you've made my day! time to start building my temperature controller now.
