Installing Lennox humidifier to a Nest

Reply

  #1
Old 01-25-15, 08:51 AM
I
Member
Thread Starter
Join Date: Jan 2015
Location: Canada
Posts: 3
Received 0 Votes on 0 Posts
Installing Lennox humidifier to a Nest

Hi all,
First post here. I posted this question on the Nest forums, and one wonderful person has helped me there, but I was hoping I could get some more opinions here since this seems a bit more active. This post is pic heavy!

I'm setting up my nest to use with my Lennox HCWP3-18 power humidifier: Healthy ClimateŽ Whole-Home Power Humidifier | Lennox Residential . I assume this humidifier is a "Stand Alone" type, since it is a power one, and from my understanding it operates independently of the furnace, since it has it's own fan. I would have gotten the pro to do it when they installed the humidifier, but they only support honeywell.

Anyways, I have everything set up according to diagrams online, in this configuration:

http://support-assets.nest.com/image...Hum-2-wire.png

However, when I turn the system on, the relay just buzzes and heats up, and nothing happens. The solenoid does not activate.

I have the two brown wires from the humidifier hooked into the relay on the switch side, with the C (white) and * (black) on the coil side of the relay. The C wire (from relay), goes to the HVAC control board C terminal, and the black wire goes directly to the * port on the nest.

There is a C wire that goes straight from the terminal on the HVAC controller to the C port on the nest.

Here are some pictures of my setup. White wires are common, the black wire goes to * :



This is the relay switch:



This is the furnace control panel, you can see 3 white wires going in the C terminal (second terminal from left), 1 for air conditioning, 1 goes to the Nest, and 1 goes to the humidifier relay switch:




Ok so I grabbed a multimeter (the one at work was broken, and the local store had them on sale so I bought one for myself).

- The C wire that goes from the C terminal on the furnace control board has 0V... I thought it would have some. Maybe I misunderstand what the Common wire does. Therefore, the C port on the nest also had 0V on it. Is the C wire a ground?

- The R wire at the nest had the voltage on it.

- When I activate the humidifier (through equipment and test), the C wire going to the relay has 0V. However, the * wire going to the relay has 27V. Both of these are on the load side.



- When I touch the multimeter leads to the switch side of the relay it reads 0V.



- If I touch the C wire to one of the humidifier wires, and the * wire to the other humidifier wire, the humidifier solenoid kicks in and water flows through it




The humidifier is plugged into a 120V wall socket. The instructions does make it sound like there is a transformer inside that should kick in when the 2 brown humidifier wires are in a complete circuit. Though touching the 2 browns do not open the solenoid.

I checked the resistance (ohm value) of various things, to learn if the there was a break in the system. I learned this:

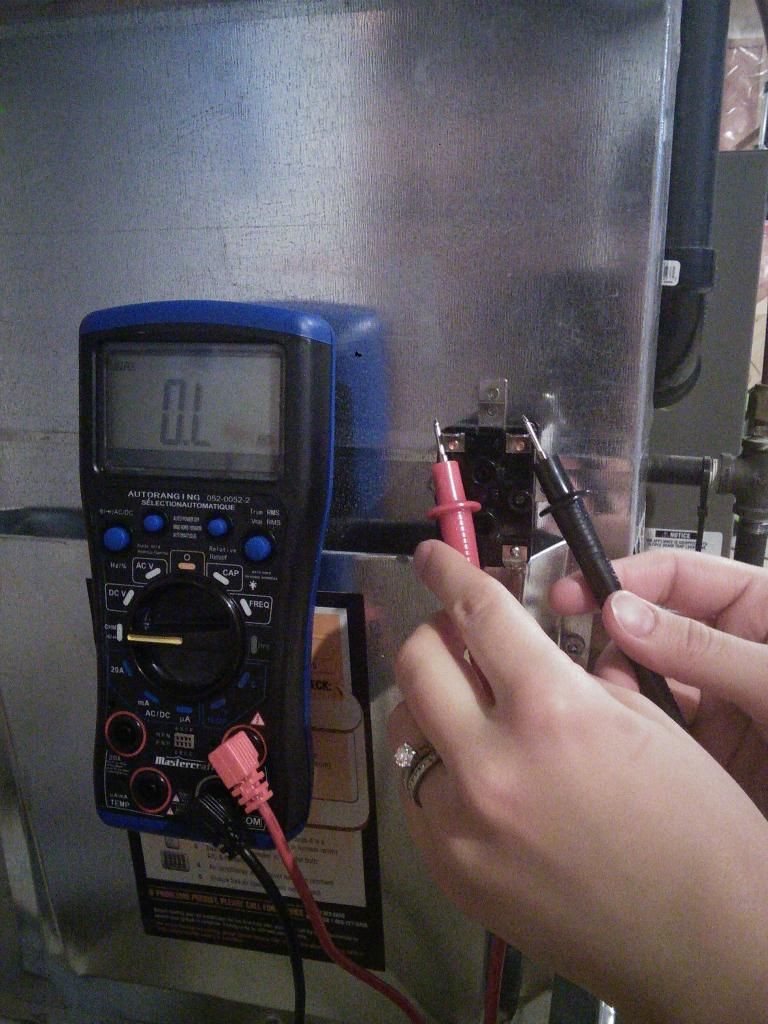

- The switch works fine. When the nest has the voltage off, the switch is closed:

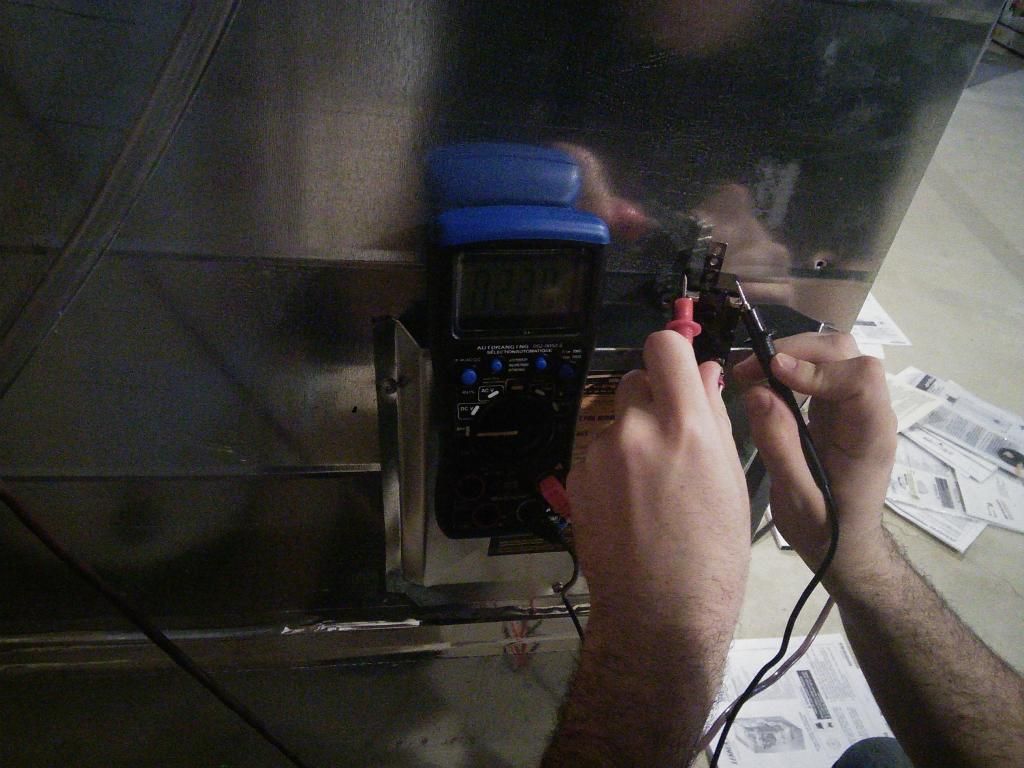

- When the voltage goes on, the switch opens, shown by the ohm value:

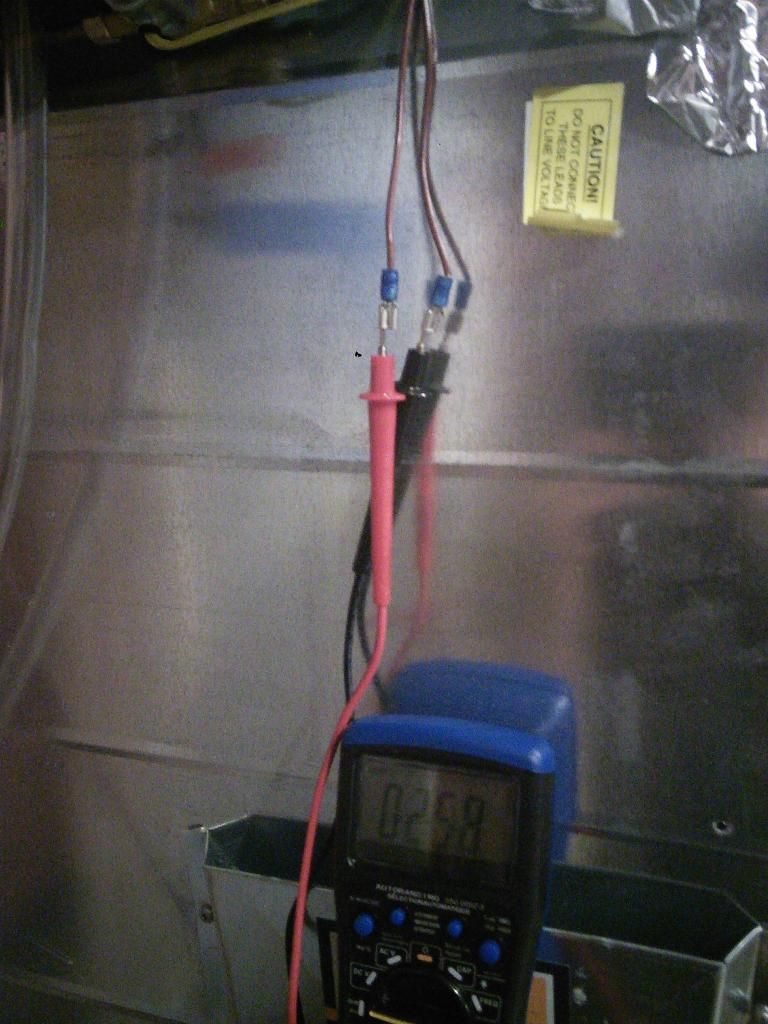

- Now I would assume the issue is indeed the humidifier, but if I check the ohms of the humidifier wires, it reads fine:




I'm a bit perplexed. I assume the issue is the humidifier, but I figured that the ohm value would be zero on the humidifier wires. I just want to know for certain before I call back the people who installed it.

So that's my pictorial guide of my problem solving. I'm fairly certain I have everything hooked up correctly, and I'm pretty sure the relay is working right. I'm fairly sure I understand the system, and that it is the humidifier that's the problem.

Can anyone provide any tips, or confirmation that I should be contacting the service people who installed the humidifier?

One more question for the Pro Nest Setup: In the option that says "Fan: Active/Deactivate", I assume I want deactivate since the power humidifier has a fan itself, and don't want the furnace fan. Correct?

Thanks for any help anyone can provide!
