Shower Plumbing

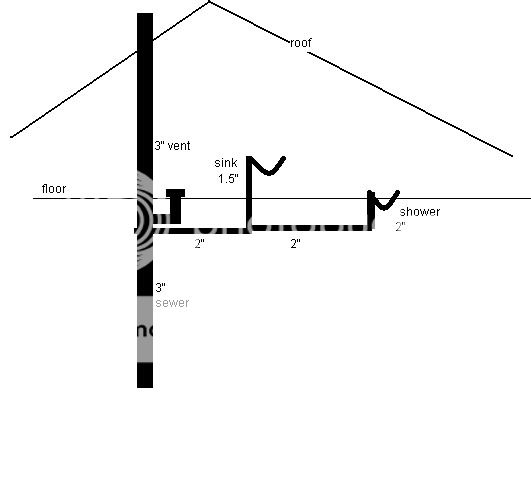

I am getting ready to plum a bathroom. Can someone with experience please vet my plumbing design. Does the sink need a vent also? Please ignore my lack of scale. The toilet is obviously way too high
Thanks!



Last edited by zbeck; 02-08-10 at 09:16 PM. Reason: updating photo URL
Sponsored Links
  #2
Old 02-09-10, 01:13 PM
shacko's Avatar
Member
Join Date: Aug 2005
Location: Baltimore County Maryland
Posts: 2,138
Received 0 Votes on 0 Posts
Smile

Vent on the toilet has to be 2in. Pipe to the shower has to be 2in., the sink and the shower can have an 1 1/2in vent each.

  #3
Old 02-17-10, 10:24 PM
Member
Thread Starter
Join Date: Jan 2008
Location: New Jersey
Posts: 57
Received 0 Votes on 0 Posts
Shower Plumbing

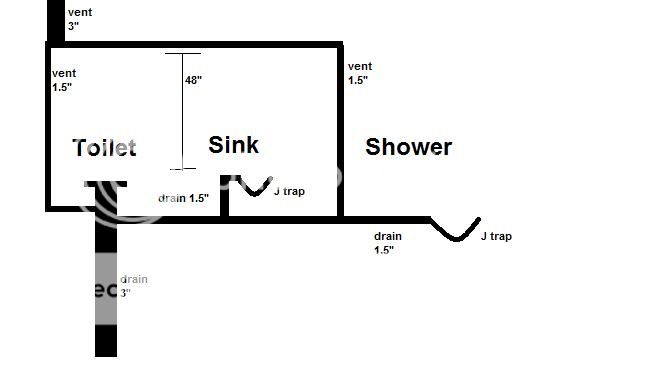

One more question. Is this diagram acceptable. Here the 3 inch vent is shared by all. Or do I need another vent between the sink and the shower? This diagram is how the existing plumbing is.

Thanks!


  #4
Old 02-18-10, 02:34 AM
Member
Join Date: Mar 2006
Location: Wet side of Washington state.
Posts: 18,482
Received 25 Votes on 19 Posts
The sink needs to have a sanitary tee and revent, what you have now is an S trap which is not allowed. The sink and shower drains cannot tee into the soil stack but must be connected with a wye.

There may be other faults but these I know are needed.

  #5
Old 02-21-10, 06:26 PM
Forum Topic Moderator
Join Date: Sep 2005
Location: USA
Posts: 4,639
Received 19 Votes on 18 Posts
As mentioned, the sink needs a direct vent. The shower needs its own vent if it's more than 6' (I think) away from the vent (soil stack).

I would recommend redrawing or dry-fitting with pictures. There are certain cases where you can use Sanitary Tees and when you have to use Wyes. At least for me, that's the most complicated part... which I've gotten wrong a few times before.
