Old Honeywell to Honeywell RTH2300B Help needed

I'm trying to replace my very old but still working Honeywell thermostat with a new RTH2300B. The existing (old) unit has marking for the five wires but they dont seem to align with the new letters. I'm attaching a picture for reference.



The left two wires appear to be labeled "TR" and when using my 110v tester show as hot. The right three wires are labeled as follows... center red wire is "W", next wire going clockwise is the green wire and is labeled "B" and the last wire on the right has no visible label on the board and is a white wire. The three right wires seem to travel together from the basement and are hooked directly to the boiler, the white wire looks to be not in use. I cant seem to locate where the two hot wires are attached to in the basement, I can trace the wires all the way until about 5 feet from the boiler then they disappear in the basement ceiling.

I tried to call Honeywell but without having letter codes they can reference they wouldn't recommend any action and said to call a proff installer.

I'm plenty savvy enough to connect it up but cant figure out where to start with matching which wires to which new connection.

Sponsored Links
  #2
Old 02-10-13, 07:53 PM
Jay11J's Avatar
Member
Join Date: Sep 2001
Location: Rochester, Minnesota
Posts: 18,427
Received 0 Votes on 0 Posts
Do you have any model# on the old stat?

  #3
Old 02-11-13, 06:06 AM
hvactechfw's Avatar
Member
Join Date: Jan 2011
Posts: 6,245
Received 2 Votes on 2 Posts
You said the left wires are hot.... what voltage did you read there? It almost looks like a old programmable sub base wiring. The left wires were used to power a clock and the right wires were used for a series 20 controller. However, it could be for series 10 also. What we really need to know, so we are not just guessing, is more info about your heating system and what terminals the wires land on inside your heating system.

  #4
Old 02-11-13, 02:43 PM
T
Member
Thread Starter
Join Date: Jul 2012
Posts: 5
Received 0 Votes on 0 Posts
Hmmm, I checked that old thermostat EVERYWHERE and not a model # to be found. Would a picture of the face itself help at all? There is a clock on it though. I cant find my meter but I have a tester that detects between 50-250v and it triggers when hitting the two lines on the left and notta for the center and right wires.

I can take a look at where the wires run to in the boiler itself and reply back shortly.

  #5
Old 02-11-13, 02:59 PM
hvactechfw's Avatar
Member
Join Date: Jan 2011
Posts: 6,245
Received 2 Votes on 2 Posts
yes, pictures are good, find out where they go to the boiler, and get a meter!

  #6
Old 02-16-13, 08:43 AM
T
Member
Thread Starter
Join Date: Jul 2012
Posts: 5
Received 0 Votes on 0 Posts
Talking

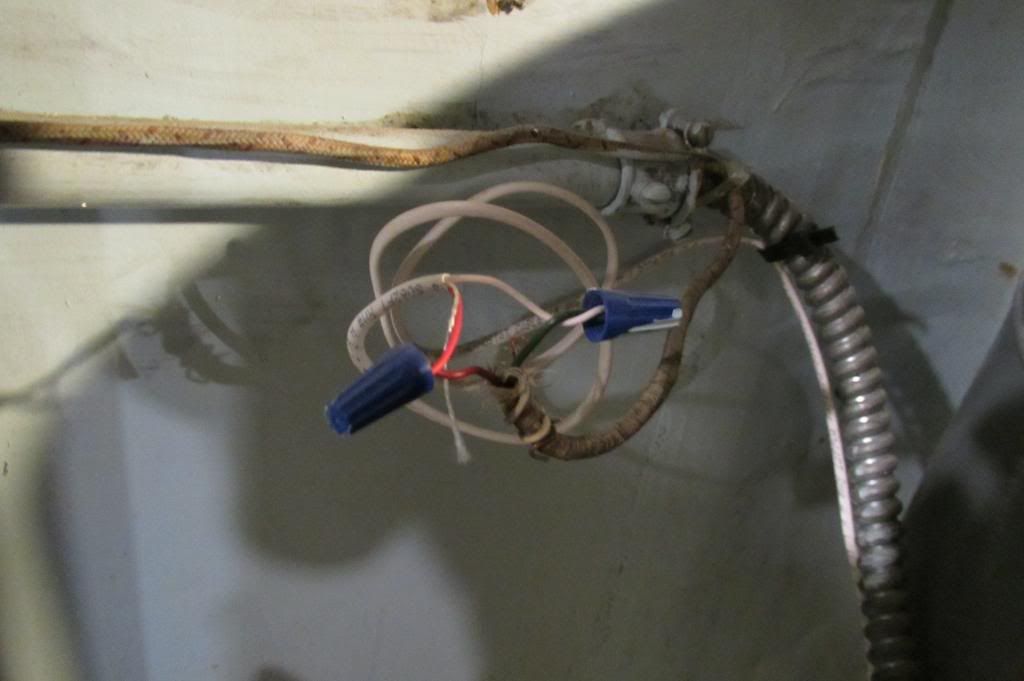

It appears the red wire on the right goes to R on the boiler and the green wire on the right goes to G on the boiler.
